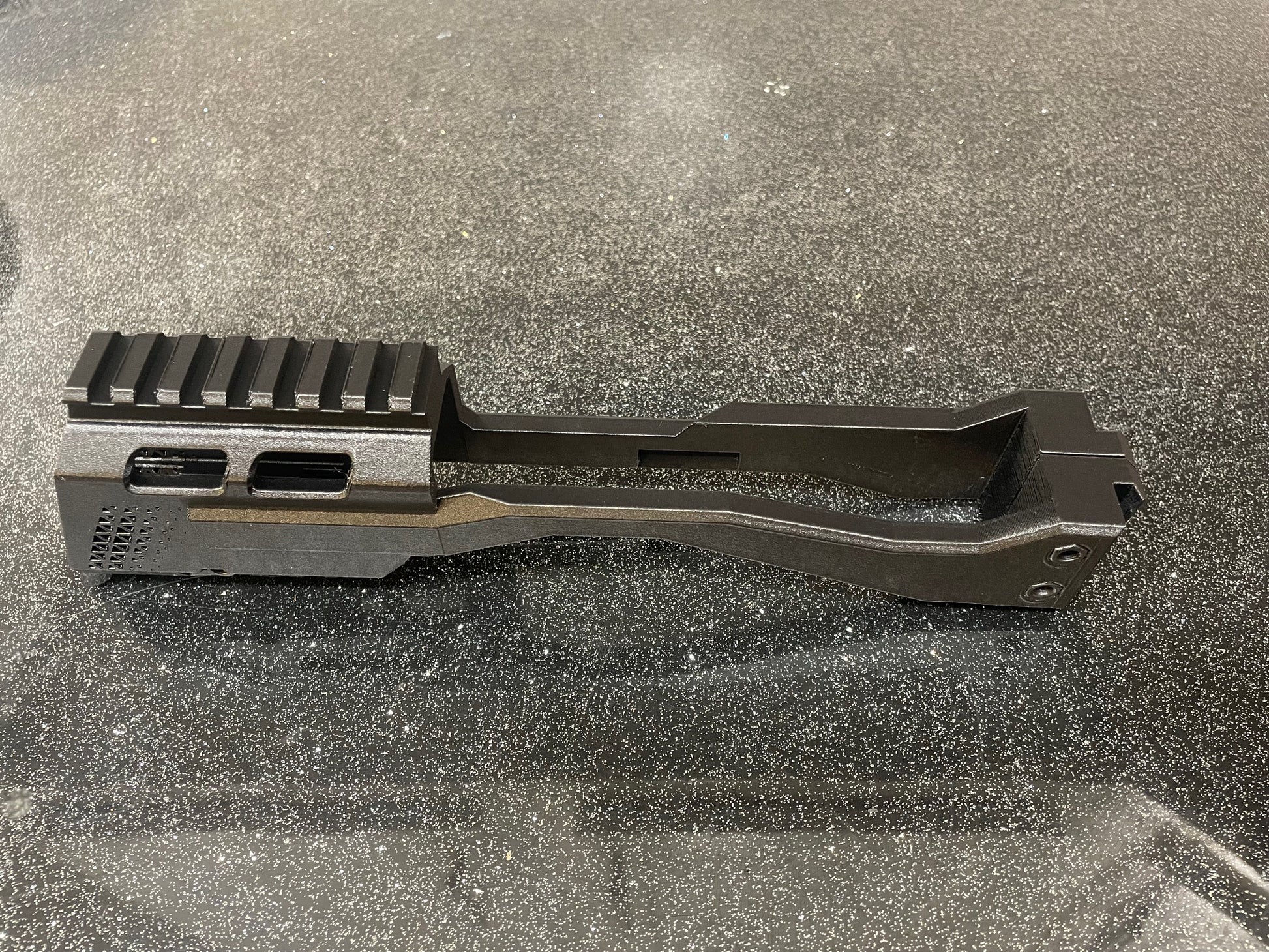

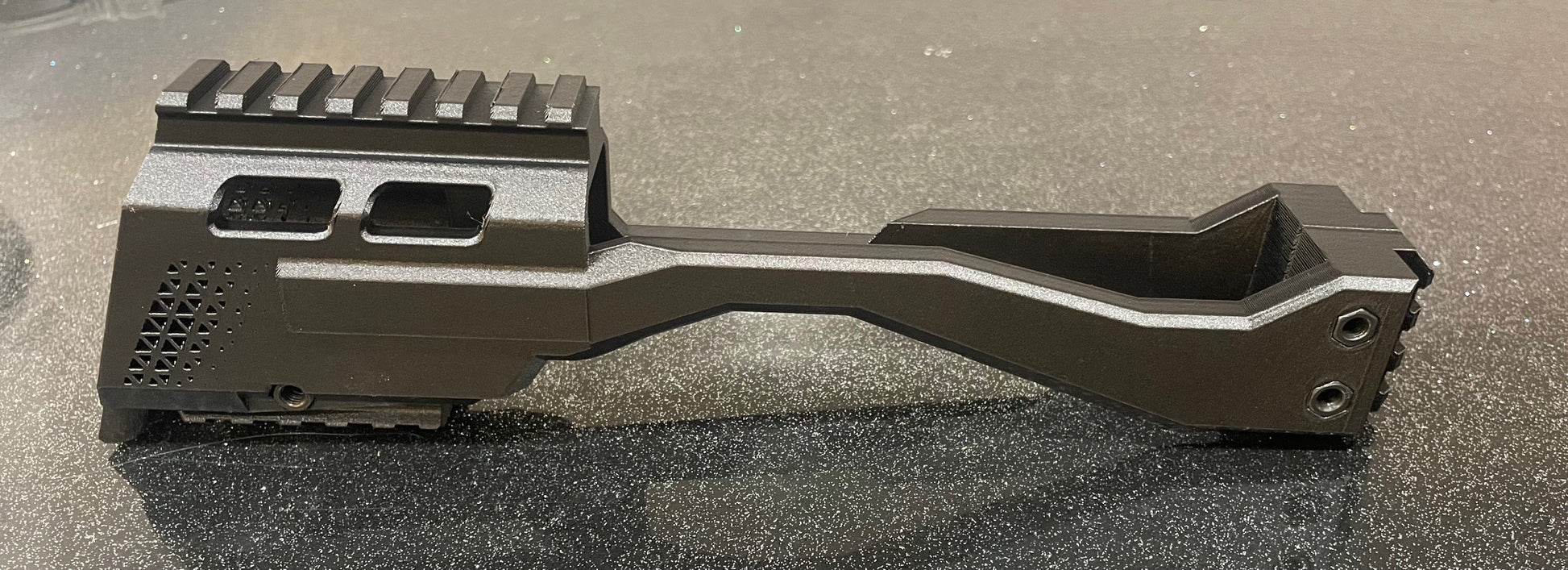

TX-22 Front Picatinny Accessory Chassis – Rail Mount

TX-22 Front Picatinny Accessory Chassis – Rail Mount

Product Overview

Upgrade your rail-equipped training or platform with this front Picatinny-mounted accessory chassis. This add-on provides additional mounting capability with original equipment. It attaches externally to any standard Picatinny 1913 rail and is ideal for lights, lasers, or other compatible accessories.

Features

• Attaches to external Picatinny 1913 rail only (Full-size)
• Lightweight, durable PETG-Carbon Fiber construction
• External attachment only (Adds accessory mounting capability to front Picatinny rails)
• Compact, and sleek design for portability.
• Simple, tool-assisted installation with included hardware


Important Compatibility Note: Based on customer feedback, the safety should be placed in the OFF position before installing the pistol into the chassis. Once installed, the safety may not be able to be switched to the ON position, depending on your specific firearm configuration and tolerances. Please verify compatibility with your setup before use.

YOU WILL NEED TO PURCHASE A CHARGING HANDLE FOR THIS CHASSIS.

Specifications

Installation Instructions.

• Remove the Picatinny rail mount by removing the 4 screws holding it in place.
• Remove the 4 main bolts holding the two halves of the chassis together—two toward the front and two toward the rear.
• Separate the two halves of the chassis and lay one half down.
• Make sure the safety is in the OFF position. Place the TX-22 into the chassis, making sure the front of the firearm is seated correctly into the grooves and that everything lines up with the firearm’s rail.
• Place the other half of the chassis on top and carefully line everything back up.
• Reinstall the 4 main bolts—two in the front and two in the rear—and tighten them evenly. They only need to be snug; there is no need to overtighten them.
• Once everything is assembled, you can reinstall the Picatinny rail mount if you wish to use it.

• Bolt torque specs should range between 3-6 in.lb (Exceeding over 6 in.lb can cause damage)
• Use thread locker for all mounting hardware.
• This is an accessory only. Not a firearm, not a firearm component, not a frame or receiver and contains no regulated parts
